Logic circuits serve as the essential components of all digital electronic systems. Ranging from basic devices such as calculators and watches to intricate systems like computers and smartphones, logic circuits allow machines to handle binary information (0s and 1s) and execute a wide array of functions. Grasping the concept of logic circuits is crucial for both students and professionals in the fields of electronics, computer engineering, and information technology.
What Are Logic Circuits?
Logic circuits, often referred to as digital circuits or switching circuits, consist of electronic components that function based on logical (binary) inputs to generate particular outputs. These circuits execute Boolean logic operations, utilizing binary values: 1 (true/high) and 0 (false/low). The output produced by a logic circuit is entirely dependent on its input and the logic functions it carries out.
There are two primary categories of logic circuits:
- Combinational Logic Circuits
- Sequential Logic Circuits
Each type plays a distinct role in the processing and control of data within digital systems.
1) Combinational Logic Circuits

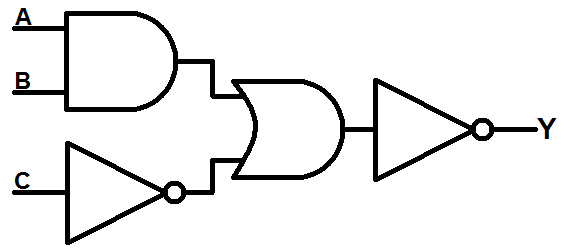

Combinational circuits are types of logic circuits where the output at any specific moment is determined exclusively by the current inputs. These circuits do not incorporate any form of memory or storage. As soon as the inputs are altered, the output is modified instantaneously according to the logical function.

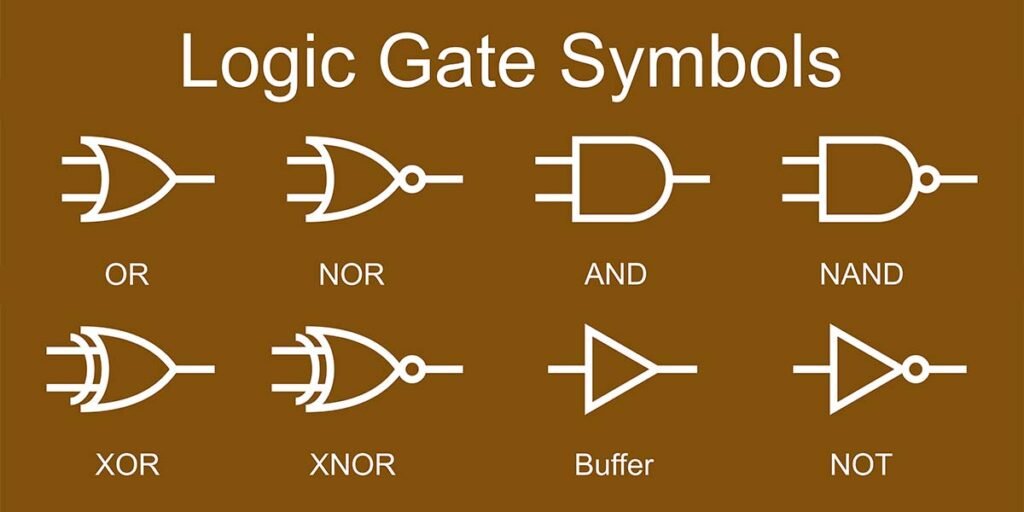

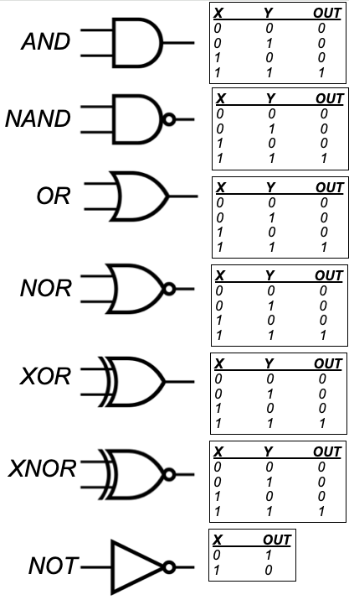

Common Combinational Components:
- AND Gate: Produces an output of 1 only when all inputs are 1.
- OR Gate: Produces an output of 1 if at least one input is 1.
- NOT Gate (Inverter): Generates the inverse of the input.
- NAND, NOR, XOR, XNOR: Specialized gates utilized for more complex operations.
Example: Half Adder A half adder is a fundamental combinational circuit designed to sum two single-bit binary numbers. It generates two outputs: Sum and Carry.
Sum = A ⊕ B (XOR)
Carry = A • B (AND)
Such circuits are frequently utilized in arithmetic logic units (ALUs), data routing, and essential processing tasks.
1) Combinational Logic Circuits
Unlike combinational circuits, sequential circuits consider both current inputs and past inputs to determine the output. They incorporate memory elements and can store data. This memory is realized through feedback loops or flip-flops.
Key Elements of Sequential Circuits:
- Flip-Flops: Fundamental memory elements that retain one bit of data.
- Latches: Comparable to flip-flops but operate on a level-triggered basis instead of an edge-triggered one.
- Registers: Collections of flip-flops utilized to store multiple bits.
- Counters: Employed to tally pulses, events, or operations.
- Clocks: Supply timing signals to regulate when state transitions take place.
Sequential circuits find application in memory units, timers, counters, microprocessors, and any system that necessitates data storage or decision-making over time.

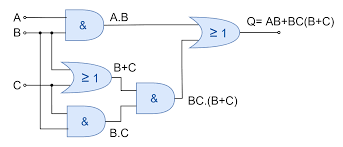

Boolean algebra in Logic Circuits
Logic circuits are constructed utilizing Boolean algebra, which is a mathematical framework for binary logic. Boolean expressions undergo simplification to decrease the number of gates needed, employing various rules and laws, including:
- De Morgan’s Theorems
- Distributive, Associative, and Commutative Laws
- Identity and Null Laws
The simplification of these expressions contributes to a reduction in circuit complexity, overall cost, and power usage.
For instance, consider a logic function defined as:
F = AB + A’B
This expression can be simplified through the application of Boolean algebra:
F = B(A + A’) = B(1) = B
Thus, rather than requiring two AND gates and one OR gate, the complete logic circuit can be substituted with a single wire that transmits the value of B.
Practical Uses of Logic Circuits
- Logic circuits: logic circuits form the foundation of contemporary digital systems, which encompass the circuits.

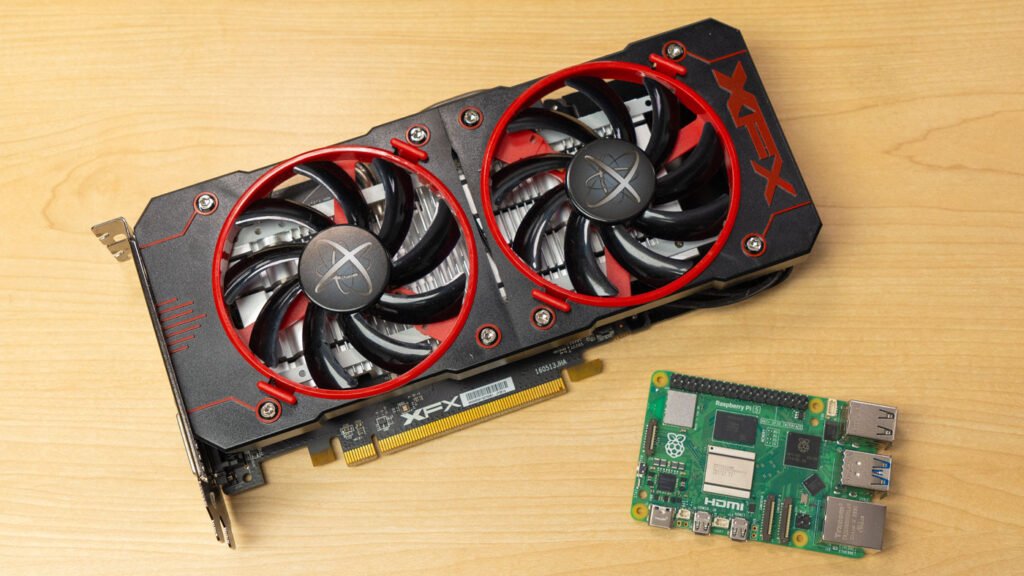

- Computers: Central Processing Units (CPUs) and Graphics Processing Units (GPUs) utilize millions of logic gates to execute calculations.
- Mobile Phones: Logic circuits are employed for signal processing, controlling user interfaces, and facilitating communication.
- Digital Watches: Logic circuits are utilized to regulate timing and manage display operations.
- Traffic Lights: Sequential logic circuits oversee the timing of light changes.
- Security Systems: Logic gates analyze sensor inputs and activate alarms.
Significance of Reducing Logic Circuits
Effective design of logic circuits is essential for optimizing performance and managing resources. Decreasing the number of gates leads to:
- Lower power consumption (particularly in devices powered by batteries)
- Reduced physical space on chips (which is vital for microelectronics)
- Decreased propagation delay (resulting in quicker system responses)
- Lower manufacturing costs
- This underscores the widespread use of simplification methods such as Karnaugh Maps, Boolean algebra, and software tools like Verilog and VHDL.

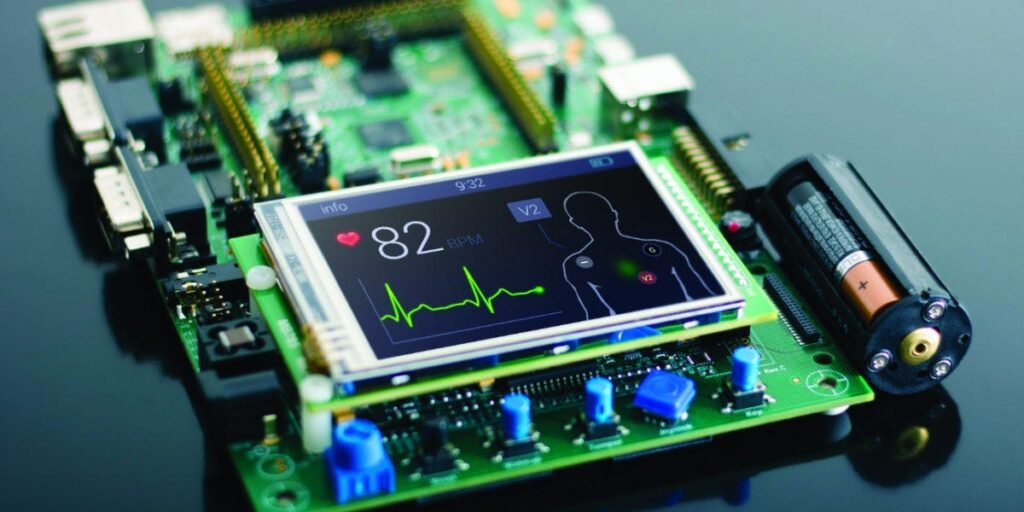

Embedded Systems: Microcontrollers found in appliances such as microwave ovens and washing machines rely on logic circuits for automated control.
Conclusion
Logic circuits are fundamental to digital electronics, converting binary inputs into significant outputs via mathematical logic. Whether employing basic gates in a combinational circuit or intricate flip-flop-based sequential logic, these circuits embody the intelligence of contemporary devices. A comprehensive grasp of logic circuits is essential not only for engineers and programmers but also for anyone engaged in technology. As digital systems become more complex, mastering the principles of logic design will remain crucial for creating efficient, rapid, and dependable electronic systems.
